 Features |
 Support to multiple COB and multi-chip LEDs.
Glass lens for COB are available.
IP66 rated, suitable for outdoor applications.
Adjustable multi-angle stainless steel mounting bracket including screws.
Customized for screw holes, heatsink size, brackets and heat pipe layout are available. |
| |
| Specifications |
| Type : |

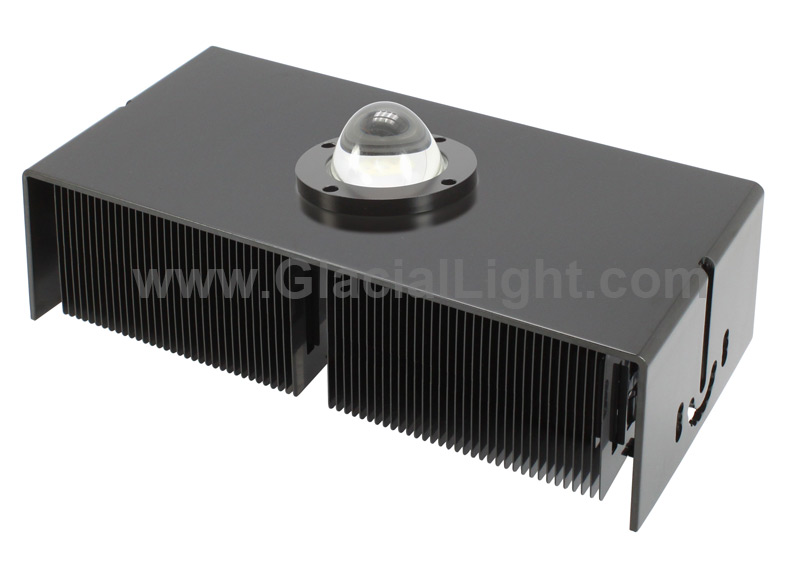

Igloo SS250
(single CoB, 5 heatpipes) |

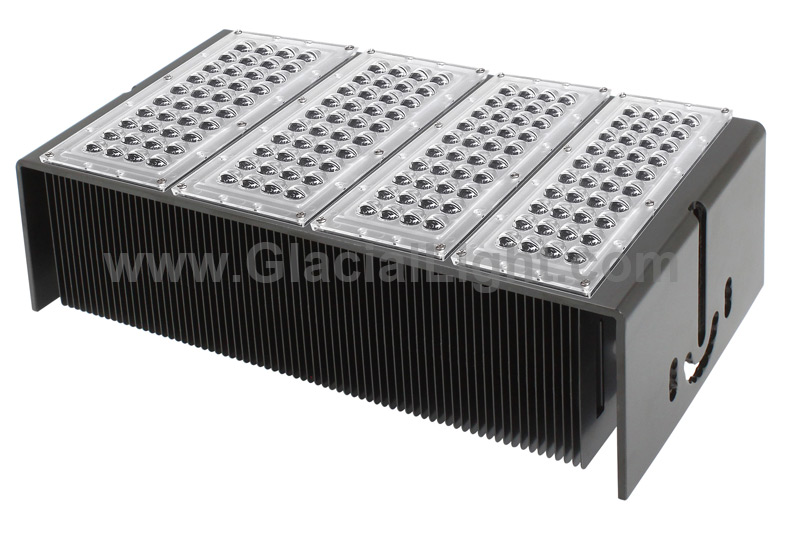

Igloo SS250
(multi-chip) |
| Part No. |

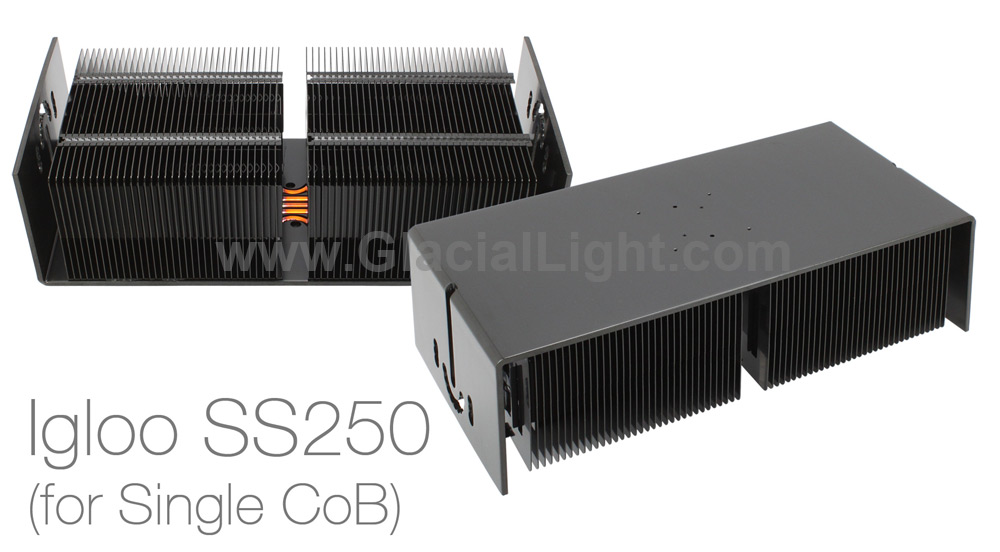

AT-SS250000AB2001 |

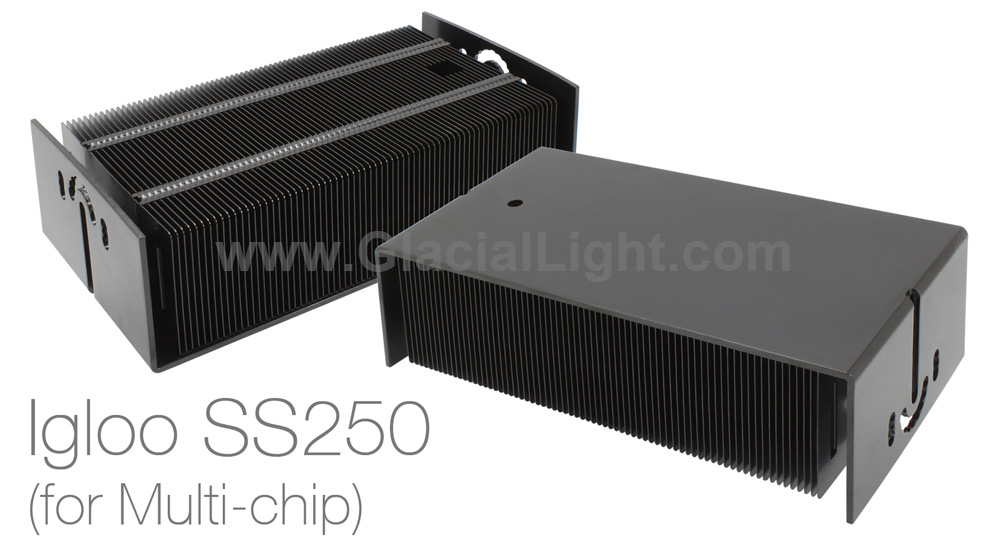

CT-SS250000AB0001 |
| Dimension (mm) |
400 × 200 × 110 |
400 × 200 × 110 |
| Weight (g) |
4180 |
4315 |
| Material |
Aluminum + Copper |
Aluminum |
| Color |
Black |
| Surface Treatment |
ED Coating |
| Crafts |
Stamping + Bonding |
| thermal resistance (°C / W) |
0.3786 |
0.3144 |
| surface area (mm^2) |
2,629,900 |
2,667,600 |
Reference design power
(watts) |
~315W |
~235W |
| Photograph |
 |
 |
| Technical drawing |
 |
 |
The reference system power is based on power efficiency is 95% and case temperatures of COB
and m-chip are 120 and 95 ¢J.
The single COB solution is based on heat pipe solution. |
|
| |
| |
| Accessory |
| Single Unit Kits |
|
|
| Part No. |
CT-SS250000AB1002 |
 |
| Material |
SUS201+ SPCC+SS304 |
| Contents |
U type bracket x1
Driver bracket x 1
M10-20L Screw x4
M5-16L Screw x4 |
| Color |
black |
| Surface Treatment |
electrophoresis |
| Crafts |
Stamping |
| Example |
