 Features |
 Support to multiple COB and multi-chip LEDs.
Glass lens for COB are available.
IP66 rated, suitable for outdoor applications.
Adjustable multi-angle stainless steel mounting bracket including screws.
Customized for screw holes, heatsink size, brackets and heat pipe layout are available. |
| |
| Specifications |
| Type : |
Igloo SS200-V2
(single CoB, 3 heatpipes) |
Igloo SS200-V2
(multi-chip) |
| Part No. |
AT-SS200V20AB1001 |
CT-SS200V20AB0001 |
| Dimension (mm) |
290×200×110 |
290×200×110 |
| Weight (g) |
3090 |
3195 |
| Material |
Aluminum + Copper |
Aluminum |
| Color |
Black |
| Surface Treatment |
ED Coating |
| Crafts |
Stamping + Bonding |
| thermal resistance (°C / W) |
0.4338 |
0.4063 |
| surface area (mm^2) |
1,975,511 |
2,003,799 |
Reference design power
(watts) |
~275W |
~200W |

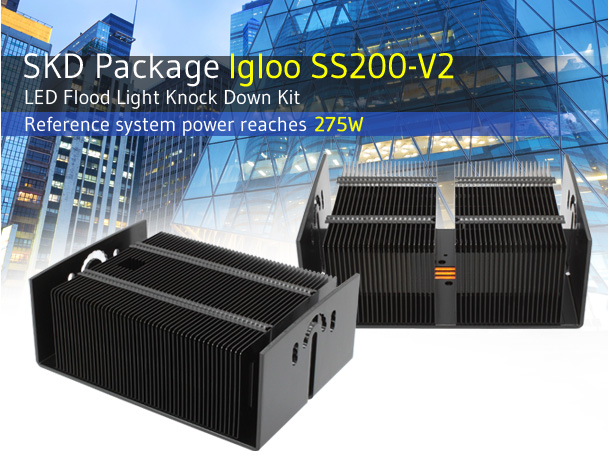

| Photograph |
 |
 |
| Technical drawing |
 |
 |
The reference system power is based on power efficiency is 95% and case temperatures of COB
and m-chip are 120 and 95 ¢J.
The single COB solution is based on heat pipe solution. |
|
| |
| |
| Accessory |
| Single Unit Kits |
| Part No. |
CT-SS200V20AB2001 |
 |
| External Dimension |
294 x 258.8 x 60mm |
| Material |
SUS201+ SPCC + SUS304 |
| Contents |
U type bracket x1
Driver bracket x 1
M10-20L Screw x4
M5-16L Screw x4 |
| Color |
black |
| Surface Treatment |
electrophoresis |
| Crafts |
Stamping |
| Example |
|
|
| |
| |
|
|
|
|
