 Features |
 Support to multiple COB and multi-chip LEDs.
Glass lens for COB and glass cover for multi-chip are available.
IP66 rated, suitable for outdoor applications.
Adjustable multi-angle stainless steel mounting bracket include screws.
Customized is available. The screw holes, heatsink size, brackets and heat pipe layout are available.
|
| |
| Specifications |
| Type : |

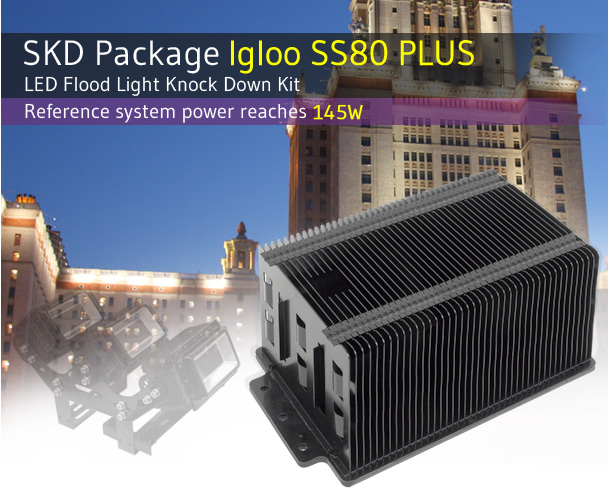

Igloo SS80 PLUS |
| Part No. |
CT-SS080P00AB0001 |
| Dimension (mm) |
244 x 140 x 100 |
| Weight (g) |
1470 |
| Material |
Aluminum |
| Color |
Black |
| Surface Treatment |
ED Coating |
| Crafts |
Stamping + Bonding |
| thermal resistance (°C / W) |
COB: 0.8137
multi-chip: 0.8717 |
| surface area (mm^2) |
1,171,250 |
| Reference design power (watts) |
COB: ~145W
multi-chip: ~95W |
| Photograph |
 |
| Technical drawing |
.gif) |
The reference system power is based on power efficiency is 95% and case temperatures of COB
and m-chip are 120 and 95 ¢J. |
|
| |
| |
| Accessory |
| |
Single unit kits |
Double unit kits |
Triple unit kits |
| Part No. |
CT-SS080P00AB1001 |
CT-SS080P00AB2001 |
CT-SS080P00AB3001 |
| Material |
SUS201+ SPCC + AL1100 |
SUS201+ SPCC + AL1100 |
SUS201+ SPCC + AL1100 |
| IP Rating |
N/A |
N/A |
N/A |
| Contents |
U type bracket x1
Driver bracket x 1
Heatsink bracket x 2
M5 -12L Screw x 4
M5 -16L Screw x 6
M10 -20L Screw x 4 |
U type bracket x 1
Driver bracket x 2
Driver bridge x 2
V type bracket x 2
Heatsink bracket x 4
M5 -12L Screw x 12
M5 -16L Screw x 12
M10 -20L Screw x 12 |
U type bracket x 2
Driver bracket x 3
Driver bridge x 2
W type bracket x 2
Heatsink bracket x 6
M5 -12L Screw x 16
M5 -16L Screw x 18
M10 -20L Screw x 20 |
| Packing |
2 pcs in one carton |
2 pcs in one carton |
1 pcs in one carton |
| Net Weight |
1270 g |
3000 g |
4900 g |
| Photograph |
01.jpg "LED Heatsink Single unit kits") |
01.jpg "LED Heatsink Double unit kits") |
01.jpg "LED Heatsink Triple unit kits") |
| Example |
_1-1.jpg "Single Unit Configurations") |
_1-2.jpg "Double Unit Configurations") |
_1-3.jpg "Triple Unit Configurations") |
|
| |
| Accessory |
| |
Glass Cover |

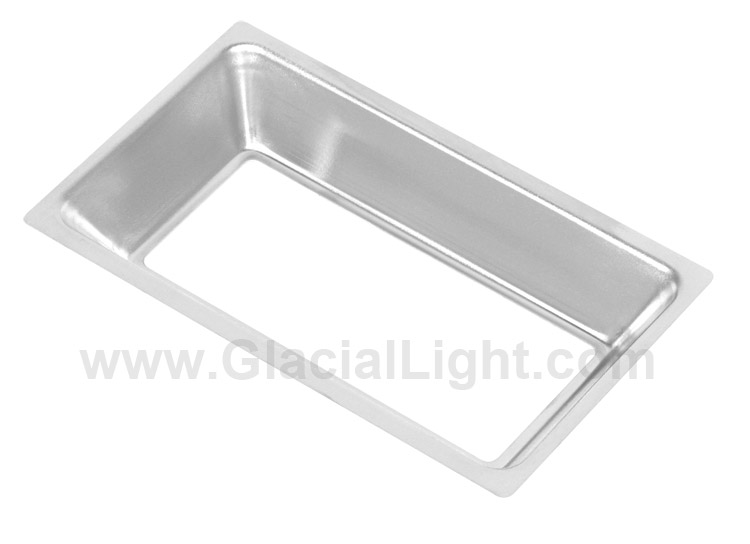

Reflector A |

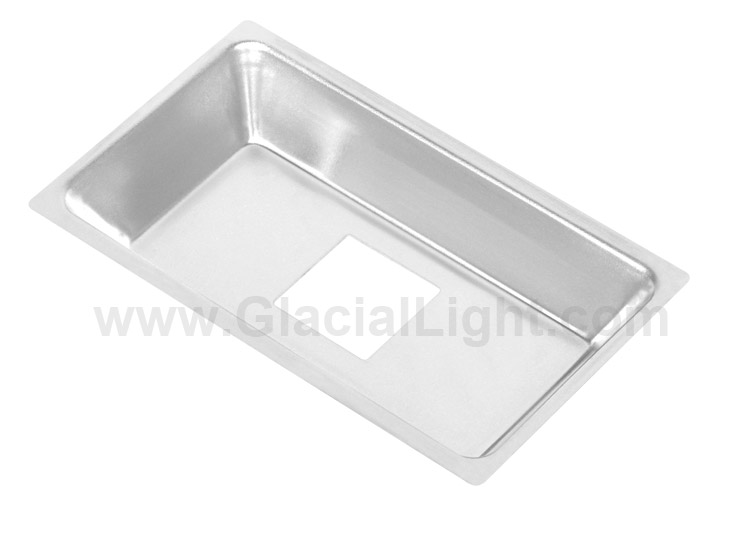

Reflector B |
| Part No. |
83-SSA08041 |
27-SSA0H001 |
27-SSA0H011 |
| External Dimension |
204 x 138 x 32mm |
163 x 97 x 25mm |
163 x 97 x 25mm |
| Material |
AL1050 + Tempered Glass |
AL1050 |
AL1050 |
| IP Rating |
IP 65 |
N/A |
N/A |
| Contents |
Cover x 1
Ring x 1
M5 Screw x 18
Ventilation valve x 1 |
N/A |
N/A |
| Applicable light source |
N/A |
SMD LED light module
Source size¡G120 x 50mm |
CoB LED x 1
Source size¡G34 x 34mm |
| Packing |
20 pcs in one carton |
10 pcs in one carton |
10 pcs in one carton |
| Net Weight |
650g |
55g |
65g |
| Photograph |
.jpg "LED Heatsink Glass Cover kits") |
.jpg "LED Heatsink Reflector kits") |
.jpg "LED Heatsink Reflector kits") |
|
| |
| Cable Gland |
| Part No. |
2K-M12T0811 |
.jpg "LED Heatsink Glass Cover kits") |
| Material |
"Body¡GBrass
Lamellar Cage¡GNylon
Ring¡GNBR" |
| Thread |
M12 x 1.5 |
| Cable Range Φ |
4~8 |
| Thread O.D. C1 |
12 |
| Panel Mounting Hole |
12.0~12.3 |
| Thread Length C2 |
10 |
| Spanner Size. A/F |
17 / 17 |
| Body Min. I.D. |
8 |
| IP Rating |
IP 67 |
| Temperature Range |
-25°C ~ 100°C |
| Std. Pks (pcs) |
100 |
|
| |
| |

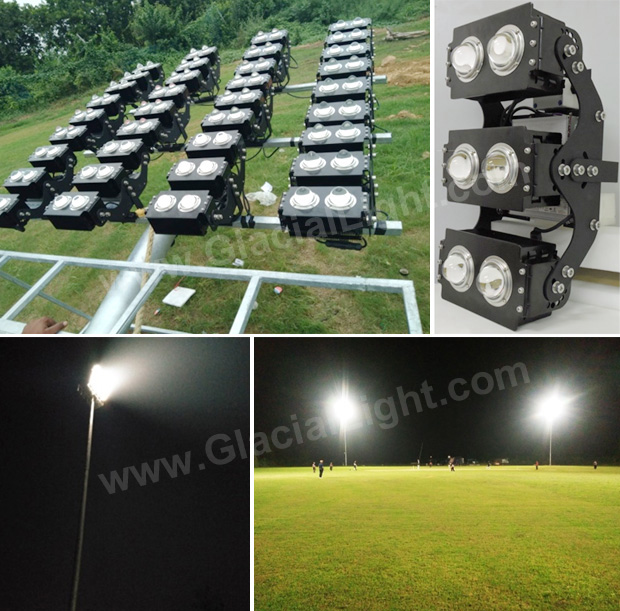

 Case studies |
 |
| |
| |
|
|
|
