 Features |
 Support to multiple COB and multi-chip LEDs.
Glass lens for COB are available.
IP66 rated, suitable for outdoor applications.
Adjustable multi-angle stainless steel mounting bracket including screws.
Customized for screw holes, heatsink size, brackets and heat pipe layout are available. |
| |
| Specifications |
| Type : |

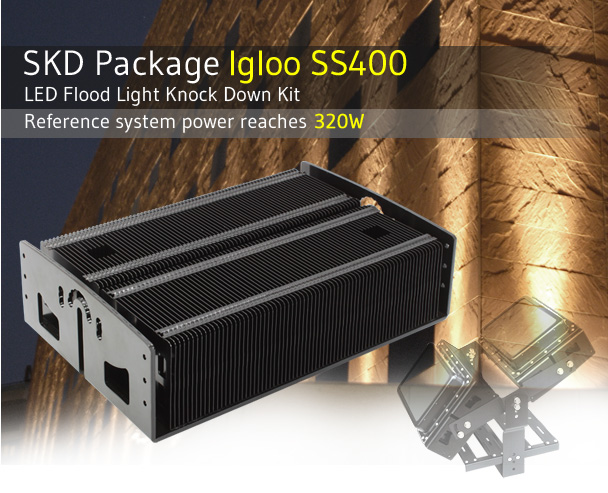

Igloo SS400
(single CoB, 5 heatpipes) |
Igloo SS400
(multi-chip) |
| Part No. |
AT-SS400000AK1001 |
CT-SS400000AK0001  |
| Dimension (mm) |
400 x 270 x 110 |
400 x 270 x 110 |
| Weight (g) |
5570 |
5750 |
| Material |
Aluminum + Copper |
Aluminum |
| Color |
Black |
| Surface Treatment |
ED Coating |
| Crafts |
Stamping + Bonding |
| thermal resistance (°C / W) |
0.3606 |
0.2754 |
| surface area (mm^2) |
3,857,400 |
3,912,600 |
| Reference design power (watts) |
~320W |
~300W |
| Photograph |
|
 |
| Technical drawing |
|
.gif) |
The reference system power is based on power efficiency is 95% and case temperatures of COB
and m-chip are 120 and 95 ¢J.
The single COB solution is based on heat pipe solution.
If Igloo SS400 is designed for multiple COBs then reference system power could reach 400W
(eg. 6 pcs COBs) |
|
| |
| |
| Accessory |
| |
Single unit kits |
Double unit kits |
| Part No. |
CT-SS400000AK2001 |
CT-SS400000AK3001 |
| Material |
SUS201 |
SUS201 |
| IP Rating |
N/A |
N/A |
| Contents |
Main bracket x 1
I shape bracket x 2 (Iron)
L shape bracket x 2 (Iron)
M5x8 Screw &nut x 12
M10 Screw &nut x 4 |
Main bracket x 1
Ω shape bracket x 2
I shape bracket x 4 (Iron)
L shape bracket x 2 (Iron)
M5x8 Screw &nut x 20
M10 Screw &nut x 12 |
| Packing |
10 pcs in one carton |
10 pcs in one carton |
| Net Weight |
2830 g |
5650g |

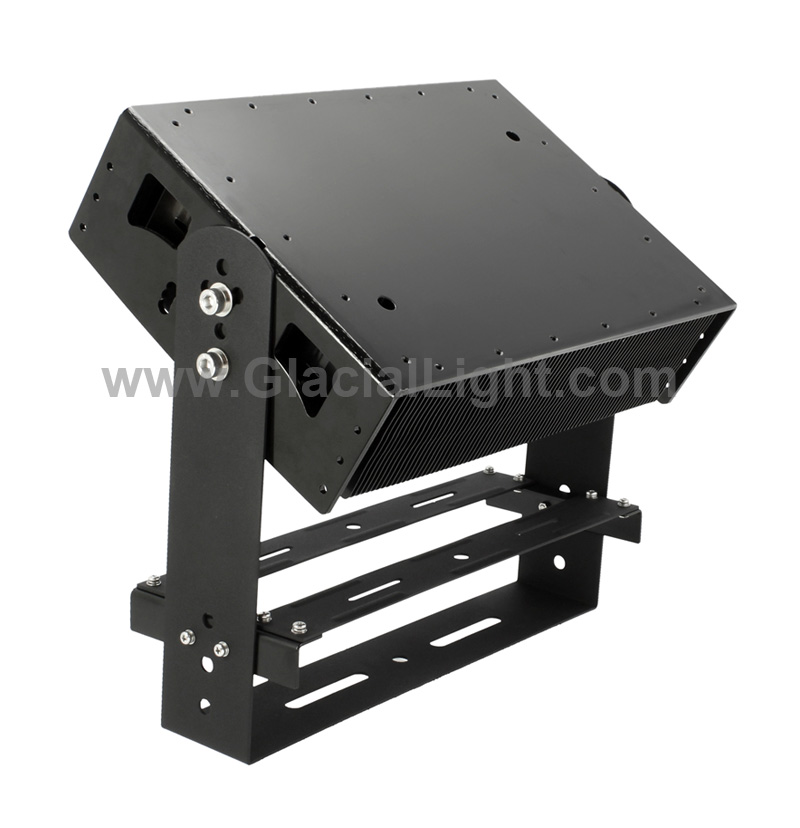

| Photograph |
.jpg "LED Heatsink Single unit kits") |
.jpg "LED Heatsink Double unit kits") |
| Example |
|
|
| |
| |
| Accessory |
| Glass Cover |
| Part No. |
CT-SS400000AK1001 |
.jpg "LED Heatsink Glass Cover kits") |
| External Dimension |
360 x 266 x 50mm |
| Material |
AL1050 + Tempered Glass |
| IP Rating |
IP 65 |
| Contents |
Cover x 1
Ring x 1
Screw x 22
Ventilation valve x 1 |
| Applicable light source |
N/A |
| Packing |
10 pcs in one carton |
| Net Weight |
1250 g |
|
|
|
| Cable Gland |
| Part No. |
2K-M12T0811 |
.jpg "LED Heatsink Cable Gland kits") |
| Material |
"Body¡GBrass
Lamellar Cage¡GNylon
Ring¡GNBR" |
| Thread |
M12 x 1.5 |
| Cable Range Φ |
4~8 |
| Thread O.D. C1 |
12 |
| Panel Mounting Hole |
12.0~12.3 |
| Thread Length C2 |
10 |
| Spanner Size. A/F |
17 / 17 |
| Body Min. I.D. |
8 |
| IP Rating |
IP 67 |
| Temperature Range |
-25°C ~ 100°C |
| Std. Pks (pcs) |
100 |
|
| |
| |
|
|
|
