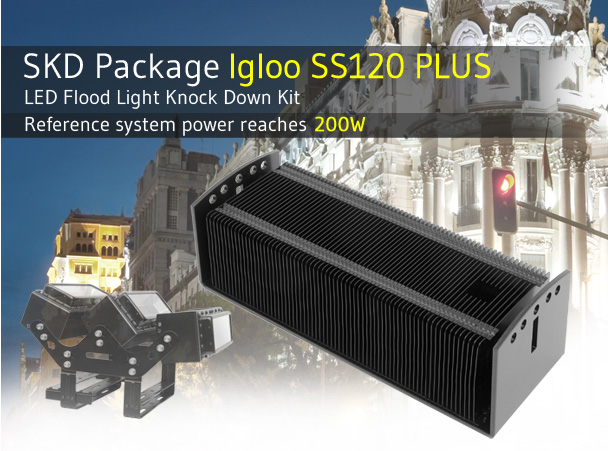

     Igloo SS120 PLUS

Features
Support to multiple COB and multi-chip LEDs.
Glass lens for COB and glass cover for multi-chip are available.
IP66 rated, suitable for outdoor applications.
Adjustable multi-angle stainless steel mounting bracket include screws.
Customized for screw holes, heatsink size, brackets and heat pipe layout are available.

Specifications
Type : Igloo SS120 PLUS
(single COB, 3 heatpipes)
Igloo SS120 PLUS
(multi-chip)
Part No. AT-SS120P00AB1002 CT-SS120P00AB0002
Dimension (mm) 370 x 134 x 115 370 x 134 x 115
Weight (g) 2840 2930
Material Aluminum + Copper Aluminum
Color Black
Surface Treatment ED Coating
Crafts Stamping + Bonding
thermal resistance (°C / W) 0.8137  0.8717
surface area (mm^2) 1,171,250 1,171,250
Reference design power (watts) ~200W ~165W
Photograph
Ttechnical drawing
The reference system power is based on power efficiency is 95% and case temperatures of COB
     and m-chip are 120 and 95 ¢J.
The single COB solution is based on heat pipe solution.


Accessory

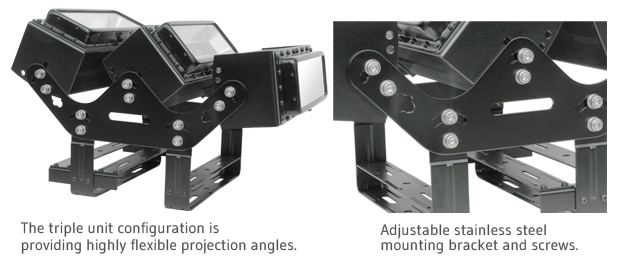

  Single unit kits Double unit kits Triple unit kits
Part No. CT-SS120000AB2002 CT-SS120000AB3002 CT-SS120P00AB4001
Material SUS201 + SPCC SUS201 + SPCC + AL1100 SUS201 + SPCC + AL1100
IP Rating N/A N/A N/A
Contents Main bracket x 1
U shape bracket x 1(Iron)
M5x8 Screw &nut x 4
M10 Screw &nut x 4		 Main bracket x 1
V shape bracket x 2 (Aluminum)
I shape bracket x 2 (Iron)
L shape bracket x 2 (Iron)
M5x8 Screw &nut x 12
M10 Screw &nut x 12		 Main bracket x 2
W shape bracket x 2 (Aluminum)
U shape bracket x 1 (Iron)
I shape bracket x 2 (Iron)
L shape bracket x 2 (Iron)
M5x8 Screw &nut x 16
M10 Screw &nut x 20
Packing 10 pcs in one carton 10 pcs in one carton 4 pcs in one carton
Net Weight 1200 g 2500 g 4400 g
Photograph

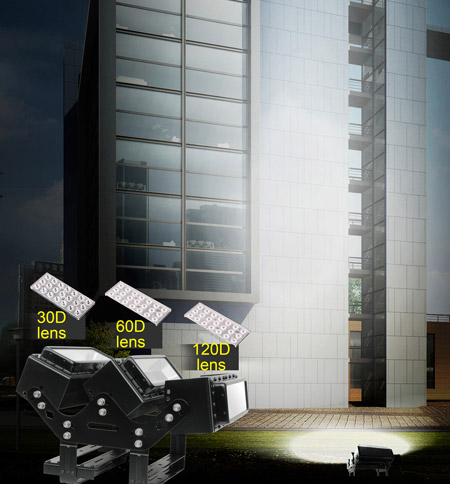

Example

Accessory

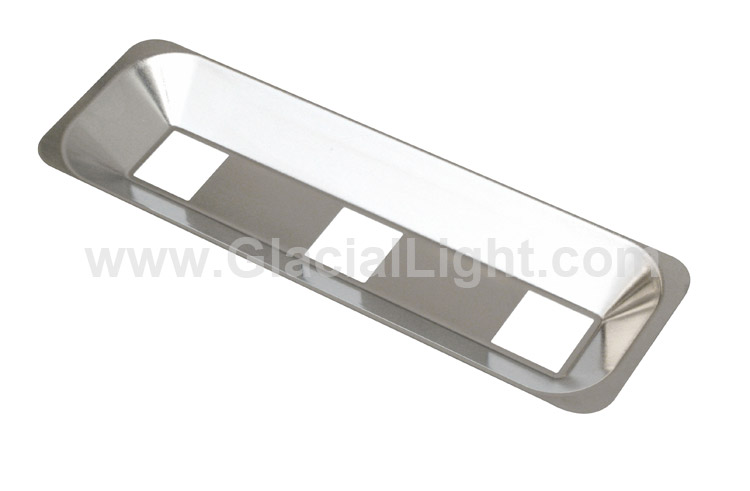

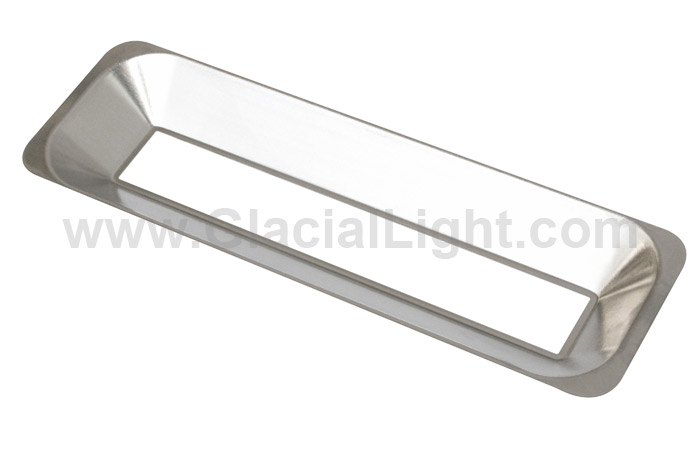

  Glass Cover Reflector A Reflector C
Part No. CT-SS120000AB1001 27-SS12S001 27-SS12S011
External Dimension 357 x 132 x 35mm 308 x 96 x 26.1mm 308 x 96 x 26.1mm
Material AL1050 + Tempered Glass AL1050 AL1050
IP Rating IP 65 N/A N/A
Contents Cover x 1
Ring x 1
Screw x 22
Ventilation valve x 1		 N/A N/A
Applicable light source N/A SMD LED light module
Source size¡G236 x 34mm		 CoB LED x 3
Source size¡G34 x 34mm
Packing 10 pcs in one carton 20 pcs in one carton 20 pcs in one carton
Net Weight 650 g 60g 70g
Photograph

Cable Gland
Part No. 2K-M12T0811
Material "Body¡GBrass
Lamellar Cage¡GNylon
Ring¡GNBR"
Thread M12 x 1.5
Cable Range Φ 4~8
Thread O.D. C1 12
Panel Mounting Hole 12.0~12.3
Thread Length C2 10
Spanner Size. A/F 17 / 17
Body Min. I.D. 8
IP Rating IP 67
Temperature Range -25°C ~ 100°C
Std. Pks (pcs) 100

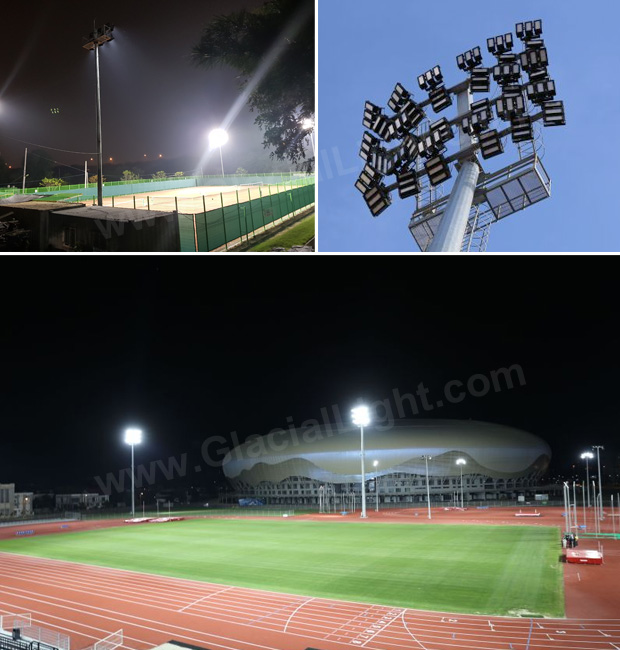

Case Study
